OPTI DRILL GRINDER 2-13MM
Drill grinder
- The handy drill grinder – perfect to grind spiral drills made of HSS or hard metal
- Easy operation for precise and cost-efficient grinding of two-edged spiral drills
- Drill bit grinding without previous knowledge – neatly, rapidly and well
- Easy to transport
- Diamond grinding stone with long durability for perfect grinding

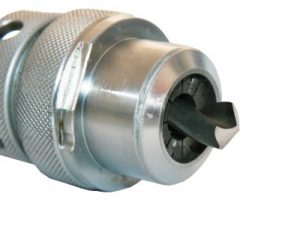

- Complete equipment with ER collet chucks in the interior of the machine
- The edges of the drill bit are fixed in the collet holder by means of the adjustment aid in a defined position and inserted in the grinding openings in a predetermined sequence in order to grind the edges
with short rotating movements of the collet holder
Technical Specifications
| Electric tension | 230 V |
| Phase | 1 Ph |
| Type of current | ~ |
| mains frequency | 50 Hz |
| Motor power | 180 W |
| Speed infinitely variable | 5300 min-1 |
| Angle of the tip sharpening | 90 to 135 degree |
| Grinding capacity drill | |
| Dimensions L x W x H | 310 x 180 x 190 mm |
| Net weight | 9,5 kg |
Delivery Information
- 11 pcs. Collets ER 20 Sizes Ø 2 – 13 mm
| GH10T-W | SPARE WHEEL GH10T |
