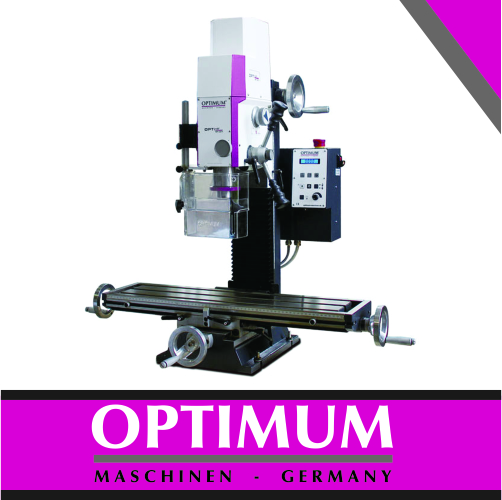

MILLING MACHINE OPTImill MH 22V

Drilling-milling machine

Milling machines with 3 axes position display

Technical Specifications

length 945 mm
Width depth 650 mm
height 950 mm
Weight (net) 120 kg
Power drive motor 0.95 kW
Supply voltage 230V
Phase (s) 1 Ph
Current Type ~
power frequency 50 Hz
Knife head size max. 52 mm
End mill size max. 12 mm
Vertical spindle projection 170 mm
Vertical spindle Spindle mount BT 20
Vertical spindle speed range 90 – 3000 min-1
Vertical spindle Number of speed ranges 2
Vertical spindle Control of the speed control electronic
Horizontal milling length 700 mm
Horizontal milling width 180 mm
Distance vertical spindle – horizontal milling min. 370 mm
Distance vertical spindle – horizontal milling table max. 370 mm
Horizontal milling T-slots size 12 mm
Horizontal milling T-slots number 3
Horizontal milling T-slots clearance 63 mm
Horizontal milling load max. 50 kg
Traverse X-axis manually 480 mm
Travel Y-axis manually 175 mm
Travel Z-axis manually 370 mm
Drilling capacity steel (S235JR) 20 mm
Continuous drilling capacity steel (S235JR) 16 mm
Vertical spindle Turning area milling head Z – X plane 90 degrees
Vertical spindle Pinole diameter 60 mm
Vertical spindle Quill stroke 50 mm

description

  • Stable drilling and milling machine with electronically infinitely variable drive. MH 22VD with digital position indicator DRO 5
  • Feed spindles adjustable without backlash by adjustable spindle nuts
  • Stable dovetail guide, precision ground and scraped with adjustable wedges
  • EMC filter class B (use in private households)
  • All guides are ground and visibly scraped (oil pockets for lubrication)
  • Precisely processed
  • Double-row angular contact ball bearings in the axles, adjustable without backlash
  • Safety electronics in 24 Volt version
  • Bellows as guide protection
  • Forward / reverse operation
  • Drilling and milling head can be tilted by ± 900, for milling and drilling work in any angular position
  • machine lamp
  • Height-adjustable protective screen with micro-switch, against flying chips and parts, for maximum protection of the user
  • Easy to read speed display and depth display, switchable mm / inch
  • fine feed

MH 22VD

  • Includes digital position indicator DRO5 and magnetic tapes in all three axes

Room amenities

  • control electronics
    • Integrated relay control
  • engine
    • Two-stage gear ratio for powerful transmission of engine power
    • Powerful DC motor with permanent current monitoring
  • Z-pillar and X-axis
    • Prepared groove for subsequent mounting of magnetic tapes
  • control panel
    • User-friendly membrane keyboard
    • Easy to read digital speed display
    • clear
    • Emergency stop impact switch
  • Tapered roller bearings
    • High concentricity ≤ 0.015 mm measured in the quill
  • pillar
    • Reversible on both sides by 30 mm
    • With swiveled head, longer travel paths and centric machining of the workpiece possible
    • Back with hole
    • Slightly oil the trapezoidal spindle or grease of the ballscrews
  • cross table
    • Solid
    • Precise surface finish
    • With T-slots
    • Adjustable wedges
    • Adjustable via 3 hand wheels
    • Adjustable end stops
  • Y-axis
    • Prepared groove for subsequent mounting of magnetic tapes
