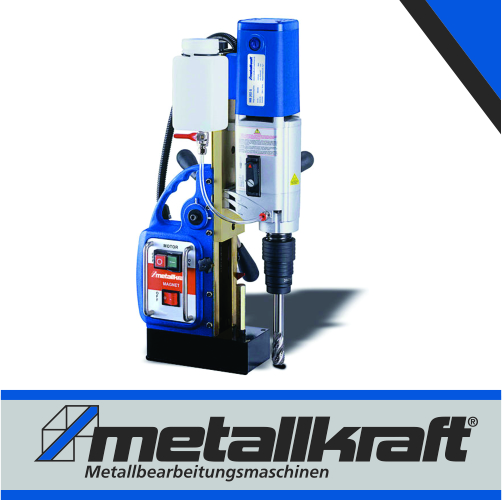

MAGNETIC BASE DRILLING MACHINE 35MM
Magnetic core drill
Technical specifications
| Drill Ø max. with core drill | 35 mm |
| Drilling depth max. with core drill | 50 mm |
| Drill Ø max. Full drill bit with adapter & drill chuck mounted | 13 mm |
| Drilling depth max. Full drill bit with adapter & drill chuck mounted | 110 mm |
| Spindle taper | firmly |
| Recording Weldonschaft | 19 mm |
| Speed (s) | 330 1 / min |
| engine power | 1100 W |
| Electrical voltage | 230V |
| Phase (s) | 1 Ph |
| Current Type | ~ |
| power frequency | 50 Hz |
| Magnetic holding power | 15000 N |
| Dimensions magnetic base | 180 x 80 mm |
| Dimension max. | 280 x 205 x 395 mm |
| Weight (device) | 13.7 kg |
| Sound pressure level Lp | 94 dB (A) |
| Sound power level Lw | 107 dB (A) |
| Measurement uncertainty K | 3 dB (A) |
| vibration |
description
- MB – High-quality magnetic core drilling machines for versatile use

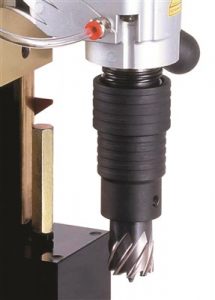

- For core drills with 19 mm Weldon shank
- Stable drill guide due to the long and especially deep mounted quill holder
- Device is earthed and double insulated, making it ideal for the job site
- High magnetic holding force
- High quality construction
- The coolant is passed through the drill
- Conversion from core drilling to full drilling in just a few steps
- Safe and reliable functions
Special features MB 202 G
- Integrated and automatic coolant supply
- Reversal of the direction of rotation of the tap without changing the direction or stopping the motor
- 3 functions: thread cutting, core drilling and solid drilling
Room amenities:
- Integrated autom. Coolant supply
- Change of direction of the tap
- (without changing direction or stopping the motor) 3 functions: thread cutting, core drilling and solid drilling
- Optimum stable drill guide due to long-dimensioned and particularly deep mounted quill guide
- Conversion from core drilling to full drilling in just a few steps
Scope of delivery & equipment
- 1 coolant tank and coolant line
- 1 protection device
- operating tool
- Plastic carrying case
