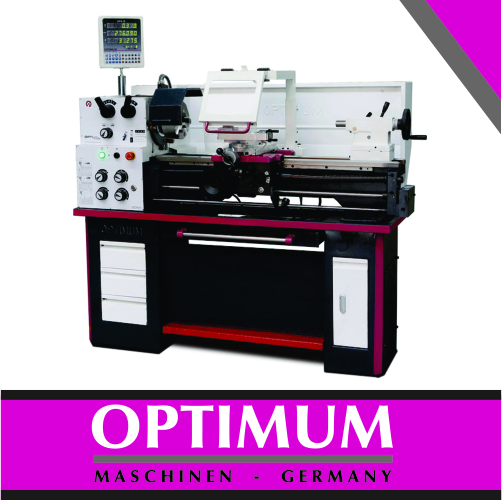

LATHE D330 X 830
Guide and traction spindle lathe
No Read Out
Technical Specifications
| Length (product) | 1,685 mm |
| Width / depth (product) | 745 mm |
| Height (product) | 1,320 mm |
| Weight (net) | 430 kg |
| Power drive motor | 1.5 kW |
| Electrical voltage | 400V |
| Phase (s) | 3 Ph |
| Current Type | ~ |
| power frequency | 50 Hz |
| Spindle taper | Camlock DIN ISO 702-2 No. 4 |
| Spindle bore / rod diameter | |
| Center height | 165 mm |
| distance between centers | 830 mm |
| Circumferential diameter over machine bed | 330 mm |
| Circumference diameter in the bed bridge | 170 mm |
| Circumferential diameter over cross slide | 196 mm |
| Turning length in the bed bridge | 196 mm |
| Speed range | 70 – 2,000 min-1 |
| Number of speed ranges | 16 |
| Travel X-axis | 98 mm |
| Travel Y-axis | 164 mm |
| Tailstock | MK 3 |
| Tailstock quill stroke | 110 mm |
| Tailstock pinole diameter | |
| spindle taper | MK 5 |
| Steel holder pick-up height max. | 16 mm |
| Feed area along | 0.052 – 1.392 mm / rev |
| Number of feeds along | 32 |
| Feed area flat | 0.014 – 0.38 mm / rev |
| Number of feeds plan | 32 |
| Gradient Metric | 0.4 – 7 mm |
| Number of slopes Metric | 26 |
| Gradient inches | 56 – 4 g / in |
| Number of slopes inches | 34 |
description
- Fully equipped guide and traction spindle lathes. TH 3309D with digital position indicator DPA 21,
TH 3309V with brushless motor for stepless speed control and digital position indicator DPA 21. - Hardened and ground Z-axis guideway
- Spindle mount Camlock DIN ISO 702-2 No. 4
- Guaranteed concentricity of the spindle nose better than 0.015 mm
- Motor protection switch (TH 3309 / TH 3309D)
- DC 24 volt electrical system with two-channel safety circuit according to EN 23125
- Lockable main switch
- Right / left rotation on bed sled switchable
- leading spindle
- Machine base with tool compartment on the right side
- Safety handwheels with release function in the X and Z axis
- Emergency stop device with foot control
TH 3309D / TH 3309V
- Digital position indicator DPA 21
- User-friendly membrane keypad, splash-proof, closed and glare-free
- Significant reduction in production times
- Higher work accuracy
- Error rate is reduced
- X, Z0, Z axis with 8-digit display each
- Clearly arranged keyboard
- glass scales
TH 3309V: Powerful brushless drive
- Especially quiet running
- Approximately constant torque over the entire speed range
- High power output
switch cabinet
- 24 volt DC power supply
- All contactors and relays from Siemens or Schneider – TH 3309V from Eaton
Room amenities:
main spindle
- Running in oil bath
- Gear wheels smooth, hardened and ground
sled
- Precisely worked
- Handwheels with adjustable fine scale 0.04 / 0.02 mm
- Quadruple tool holder
- All guides can be adjusted by wedge strips
- Adjustment range upper slide ± 90 °
prism bed
- Heavily ribbed
- Induction hardened
- precision ground
tailstock
- For taper turning ± 10 mm adjustable
- Tailstock quill and hand wheel with adjustable fine scale 0.025 mm
LED machine light
- Integrated in chip protection
substructure
- No toolboxes on the left, only panels
tool compartment
Right-left switch
- two channels
- tested according to EN 23125
hand wheels
- decoupled
- tested according to EN 23125
switch
- with life cycle calculation
- tested according to EN ISO 13849
chip pan
- extractable
- guide rails
Lathe chuck protection
- tested according to EN 23125
Delivery Information
- Fixed bezel passage Ø 19 – 70 mm
- Running bezel passage Ø 16 – 50 mm
- LED machine light
- Reduction sleeve MK 5 / MK 3
- Two fixed centering points MK 3
- Quadruple steel holder 16 mm
- Change gear set
- substructure
- Initial machine filling with quality oil
- operating tool
Do not forget the lathe chuck!
