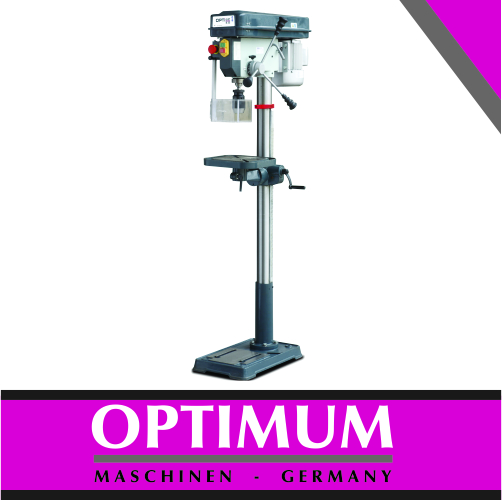

DRILL MACHINE PEDESTAL 16MM 550W 380V (B25)

Pedestal Type 16mm Chuck (B25)
Upright drilling machine
Drilling machines with V-belt

Technical Specifications

Electrical connection 400 V / 3 Ph ~50 Hz
Motor power 0,55 kW
Drilling capacity in steel (S235JR) 20 mm
Continuous drilling cap. steel 18 mm
Throat depth 170 mm
Spindle stroke 80 mm
Spindle seat MT 3
Spindle speeds 210 – 2.220 min-1
Number of steps 12 Steps
Drilling table size length x width 275 x 275 mm
T-slot size (slot width) 14 mm, diagonal
Drilling table slewable +/- 45 degree
Drilling table rotatable 360 degree
Distance spindle – table max. 760 mm
Distance spindle – stand max. 1.210 mm
Stand work surface L x W 235 x 220 mm
Column diameter 70 mm
Length x width x height 690 x 390 x 1.570 mm
Net weight 57 kg

Description

  • Cost-efficient bench drills and upright drilling machines with V-belt
  • Precisely machined drilling table, can be inclined by ± 45° and turnable by 360°
  • Solid, largely dimensioned base plate with slots, heavily ribbed at the rear side
  • 400 volt types with right-/left-handed rotation cam switch
  • Millionfold proven quality
  • from OPTIdrill B 14: Serial T-slots for vice fixture
  • Ground multi-toothed follower
  • Best power transmission due to aluminium belt pulleys in connection with toothed GATES quality V-belt
  • V-belt cover with safety switch
  • Guaranteed true running accuracy of better than 0.03 mm measured in the drilling spindle
  • Drilling spindle with precision ball bearing
  • OPTIMUM quick-action drill chuck included in the standard scope of delivery
  • Spindle sleeve lever with softgrip handles for safe working
  • Drill depth stop
  • User-friendly switch according to IP 54 with undervoltage release
  • S eparate EMERGENCY-STOP push button

Delivery Information

  • Quick-action drill chuck 1 – 16 mm
  • Morse taper MT 3
  • T-slots
