DRILL MACHINE GEARED HEAD 50M
Heavy gear drilling machine with coolant system and threading mechanism as well as automatic spindle sleeve feed
Technical Specifications
| Electrical connection | 400 V / 3 Ph ~50 Hz |
| Total connected load | 2.4 / 3.0 kW |
| Motor coolant pump | 40 W |
| Drilling capacity in steel (S235JR) | 50 mm |
| Continuous drilling cap. steel | 45 mm |
| Thread cutting in steel (S235JR) | M 42 |
| Throat depth | 375 mm |
| Spindle stroke | 230 mm |
| Spindle seat | MT 4 |
| Spindle sleeve feed | 6 steps, 0.05-0.3 mm/U |
| Spindle speeds | 54 – 2,090 min-1 |
| Number of steps | 18 steps |
| Table work surface length x width | 600 x 600 mm |
| T-slot size | 18 mm, diagonal |
| Drilling table slewable and rotatable | +/-90 degree |
| Distance spindle – drilling table (max.) | 800 mm |
| Load drilling table | 300 kg |
| Distance spindle – stand | max. 1,300 mm |
| Stand work surface L x W | 600 x 520 mm |
| Stand T-slot size | 18 mm |
| Stand Number of T-slots | 2 |
| Stand T-Slots distance | 280 mm |
| Column diameter | 200 mm |
| Length x width x height | 985 x 775 x 2,460 mm |
| Total weight | 950 kg |
Description
- Heavy gear drilling machine with coolant system and threading mechanism as well as automatic spindle sleeve feed
- Heavy, solid cast iron construction
- Very smooth running due to ground oil-quenched gear wheels
- High true running accuracy due to hardened and ground work spindle
- Two-stage driving motor
- Automatic toothed wheel lubrication via oil pump
- Threading unit
- Lockable main switch and motor protection switch
- Machine luminaire integrated in the drill head
Automatic spindle sleeve feed
- For deep drilling or pocket hole drilling, the coupler of the automatic spindle sleeve feed can be opened or closed at any time by actuating the spindle feed switch
Features:

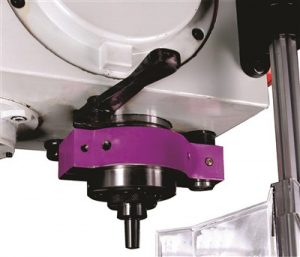

Integrated drill drift
- Easy tool change due to ejection mechanism
Spindle sleeve fine feed
- Via handwheel
Chuck guard
- Best possible protection of the user
- Height-adjustable
- Micro switch
Drilling table
- Largely dimensioned
- Solid
- Precisely worked
- Transversally running T-slots
- Heavily ribbed at the rear side
- ± 90° Rotation of 360° through it’s own axis and about the column
Casting column
- Thick-walled
- High smooth running and stability
- Column diameter 200 mm
Table height adjustment
- Motor driven
- Traverse speed 450 mm/min.
Coolant equipment
- Coolant tank integrated in the base plate
- Tank capacity 5 litres
- Delivery volume 2 l/min.
Chip filter
- cleans the coolant from rough components
- according to the machine directive
Base plate
- Usable as a working surface for extra high workpieces due to the rotatable drilling table
- Solid
- Parallel running T-slots
- Precisely machined surface
Heavy, solid cast iron construction
950 kg
Smooth running and stable
Delivery Information
- Quick-action drill chuck 1 – 16 mm
- Morse taper MT 4/B16
- T-slots
