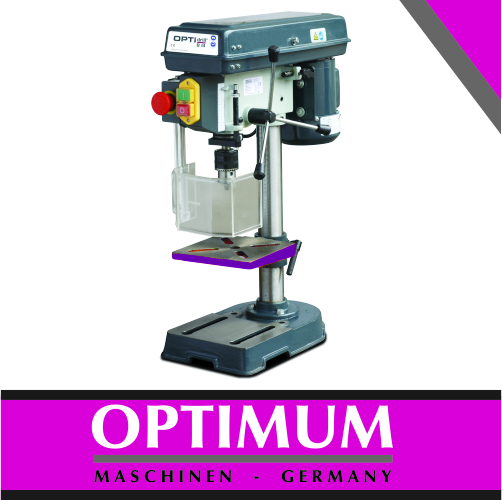

DRILL MACHINE 13MM MINI 300 W (B13)
Mini Drill 13mm Chuck (B13)
Bench drilling machine
Drilling machines with V-belt
Technical Specifications
| Electrical connection | 230 V / 1 Ph ~50 Hz |
| Motor power | 300W |
| Drilling capacity in steel (S235JR) | 13 mm |
| Continuous drilling cap. steel | 12 mm |
| Throat depth | 104 mm |
| Spindle stroke | 50 mm |
| Spindle seat | fixed/B16 |
| Spindle speeds | 520 – 2.620 min-1 |
| Number of steps | 5 Steps |
| Drilling table size length x width | 160 x 160 mm |
| T-slot size (slot width) | 14 mm, diagonal |
| Drilling table slewable | +/- 45 degree |
| Drilling table rotatable | 360 degree |
| Distance spindle – table | max. 240 mm |
| Distance spindle – stand | max. 325 mm |
| Stand work surface L x W | 135 x 175 mm |
| Column diameter | 46 mm |
| Length x width x height | 420 x 220 x 580 mm |
| Net weight | 18 kg |
Description
- Cost-efficient bench drills and upright drilling machines with V-belt
- Precisely machined drilling table, can be inclined by ± 45° and turnable by 360°
- Solid, largely dimensioned base plate with slots, heavily ribbed at the rear side
- 400 volt types with right-/left-handed rotation cam switch
- Millionfold proven quality
- from OPTIdrill B 14: Serial T-slots for vice fixture
- Ground multi-toothed follower
- Best power transmission due to aluminium belt pulleys in connection with toothed GATES quality V-belt
- V-belt cover with safety switch
- Guaranteed true running accuracy of better than 0.03 mm measured in the drilling spindle
- Drilling spindle with precision ball bearing
- OPTIMUM quick-action drill chuck included in the standard scope of delivery
- Spindle sleeve lever with softgrip handles for safe working
- Drill depth stop
- User-friendly switch according to IP 54 with undervoltage release
- S eparate EMERGENCY-STOP push button
Delivery Information
- Gear rim drill chuck 1,5 – 13 mm
