• Manual circular metal saws for steel, iron, light metals, solid material and profiles
  • Slewing range of ± 45°
  • Easy readable angle scale allows precise working
  • Adjustment of the mitre in a matter of seconds
  • Protected vice spindle
  • Solid machine base with holes on both sides for the installation of the material stand MSR

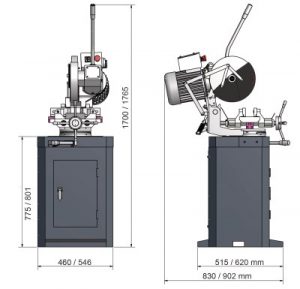

  • Machine base sizes:
    – CS 315 – 546 x 620 x 801 mm
  • The saw is delivered without circular saw blade (saw blade pitch freely selectable)

Protective equipment

  • Functional
  • All-surrounding
  • Mobile
  • Rapid opening mechanism provides for optimum safety when cutting

Vice

  • Centric clamping
  • 4-time guided
  • Individually adjustable jaws
  • Cut is always performed in an optimum position to the workpiece
  • 4-lever clamping system
  • Protected vice spindle

Long handle

  • Allows sawing without large efforts
  • Integrated push button (On/Off)
  • Automatic switching on of the coolant pump when sawing

Machine substructure

  • Solid
  • Lockable door

Coolant pump

  • Detachable coolant tank
  • Integrated powerful pump

Extent Of Supply

  • Coolant equipment
  • Machine substructure
  • Without Circular Saw Blade

Technical Specifications:

Length 560 mm
Width/depth 902 mm
Height 1765 mm
Net weight 235 kg
Drive motor output 0.75 / 1.5 kW
Motor coolant pump 40 W
Supply voltage 400 V
Phase(s) 3 Ph
Current type ~
Mains frequency 50 Hz
Saw band speed(s) 19 / 38 min-1
Saw blade diameter 315 mm
Saw blade bore 40 mm
Saw blade thickness 2.5 mm
Cutting angle -45 to 45 degree
Feed manual
Cutting angle adjustment by means of a rotatable bearing block
Vice jaw width 135 mm
Cutting capacity 0° (round) solid material 85 mm
Cutting capacity 0° (square) solid material 85 mm
Cutting capacity 0° (rectangle) solid material 70 x 130 mm
Cutting capacity +45° (round) solid material 85 mm
Cutting capacity +45° (square) solid material 85 mm
Cutting capacity +45° (rectangle) solid material 70 x 90 mm
