CAMSHAFT ALIGN BMW M52/54/56

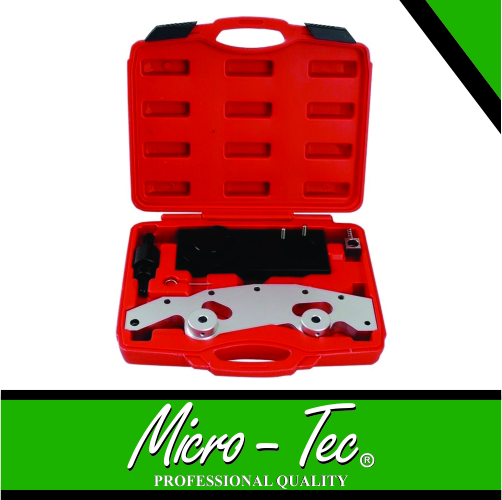

Camshaft Alignment Tool
BMW Double Vanos camshaft Timing Tool bmw M52TU / M54 / M56.
This tool kit includes a comprehensive set of timing tools for the BMW M52TU, M54, M56 engines.
Content:
1) (ref # 116150) Jig alignment: plate to set the valve Timing adjustment on the engine with Vanos room.
2) (ref # 116180) Sprocket Mounting Jig: Use for secondary preassembling sprockets with chain on camshafts.
3) (ref # 114220) Rigid Chain Tensioner: Use for primary chain tension.
4) (ref # 113292) Lock Chain Tensioner Pin: Tension chain timing locks over time.
5) (ref # 113450) VANOS Compressed Air Connection: use to pressurize single and double Vanos unit during inspection or removal and replacement.
Application for BMW 6 cylinder engine:
M52TU (1998-2000), M54 (2001-2004), and M56 (2003 present).

M52TUB25
1997-2001 E46 323i/323Ci/323ti (M52T)
1998-2001 E39 523i (M52TU)
1998-2001 E36/7 Z3 (M52TU)

M52TUB28
1997-2001 E46 328i/328Ci (M52TU)
1997-2001 E36/7 Z3 2.8 (M52B28/Z3)
1998-2001 E39 528i (M52TU)
1998-2001 E38 728i (M52TU)

M54B22
2001-2003 E46 320i/320Ci
2001-2003 E39 520i
2001-2002 E36 Z3 2.2i
2003-2005 E85 Z4 2.2i
2003-2005 E60/E61 520i

M54B25
2001-2002 E36/7 Z3 2.5i
2001-2005 E46 325i/325xi
2001-2006 E46 325Ci
2001-2004 E46 325ti
2001-2004 E39 525i
2003-2004 E60/E61 525i/525xi
2004-2006 E83 X3 2.5i
2004-2006 E85 Z4 2.5i

M54B30
2001-2005 E46 330i/330xi
2001-2006 E46 330Ci
2001-2003 E39 530i
2001-2002 E36 Z3 3.0i
2003-2005 BMW E60 530i
2003-2006 E85 Z4 3.0i
2004-2006 E83 X3 3.0i
2001-2006 E53 X5 3.0i

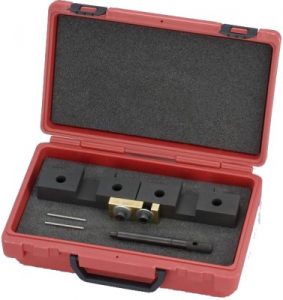

* Use with M0906533 to fix camshaft *
