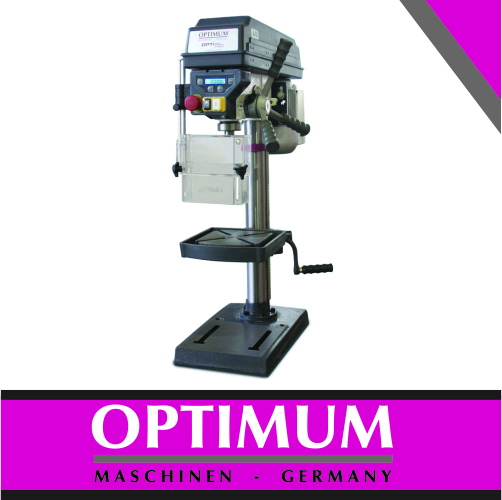

OPTIdrill D 17Pro
Drill Press
Drilling machines with V-belt
Technical Specification
| Dimensions and weights |
| Column diameter |
60 mm |
| Length |
565 mm |
| Width / depth |
275 mm |
| height |
840 mm |
| Weight approx. |
41.5 kg |
| Drilling performance |
| Drilling performance steel (S235JR) |
16 mm |
| Continuous drilling performance steel (S235JR) |
12 mm |
| Drilling table |
| Workspace length |
235 mm |
| Workspace width |
220 mm |
| T-groove size |
12 mm |
| rotation |
360 ° |
| Angle |
45 ° |
| Max. Distance spindle – drilling table |
325 mm |
| Electric Data |
| Drive motor output |
0.5 kW |
| Supply voltage |
230V |
| Mains frequency |
50 Hz |
| Machine base |
| Max. Distance spindle – machine base |
530 mm |
| Work area length |
220 mm |
| Work area width |
230 mm |
| Machine base T-groove size |
16 mm |
| Machine base T-groove number |
2 |
| Machine base T-groove spacing |
148 mm |
| Speed range |
| Speed range |
500 – 2520 min¯¹ |
| Number of gears |
5 stages |
| Spindle |
| Quill stroke |
65 mm |
| Chuck chuck |
MT 2 |
| Reach |
152 mm |
Description
- Industrial engine
- Easy to use safety switch according to IP 54
- Digital drilling depth and speed indicator integrated in the housing
- Separate emergency stop impact switch
- Precision Spindle bore
- Safety electronics in 24 V DC
- Guaranteed concentricity less than 0.02 mm in the drill quill
- Drill spindle with precision ball bearings
- High quality keyless chuck
- Depth stop
- Precision machined, stable drill table with diagonal T-slots and circumferential cooling water channel
- V-belt cover with safety switch
- One piece cast aluminum die-cast quill lever with softgrip handles
- Large, height-adjustable protective screen with safety switch
- Heavy version of the entire machine
Scope of Delivery
- Keyless chuck 1 – 16 mm
- Morse cone MK 2 / B16
- T-nuts
